Heat-resistant up to 300°C, Explosion-Proof, Fully Airtight - Blower - NEW

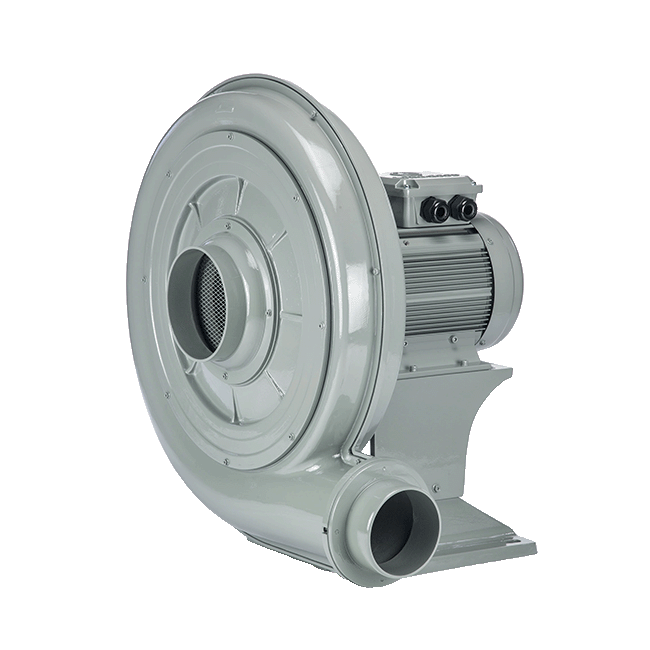

Heat-resistant up to 300°C, Explosion-Proof, Fully Airtight -Turbo Blower-CX Series - 1HP-30HP-NEW
Features
• Resistant to high temperatures from 250°C to 300°C
• Fully airtight
• Special environment/Explosion-proof motor/Standard motor options
• Multiple assembly methods, customizable per client requirements
• For inquiries, please contact our company
• Patents filed in multiple countries
• Fully airtight
• Special environment/Explosion-proof motor/Standard motor options
• Multiple assembly methods, customizable per client requirements
• For inquiries, please contact our company
• Patents filed in multiple countries
Applications: Pharmaceutical Machines, Food Processing Machines, Woodworking Machines, Film Extrusion Machines, Dryers, Powders and Granules Transport, Packaging Machines, Printing Machines, Textile Machines, Heat Dissipation, Air Supply, Dust collectors, Negative Pressure Attraction, And other Air Supply Purposes, etc.
Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
1HP - 30HP
1HP - 30HP
Inlet/Outlet(inch)
4"(100mm) - 8"(200mm)
4"(100mm) - 8"(200mm)
Max. Pressure (mmAq)
150 - 860
150 - 860
Max. Air Flow (m³/min)
15 - 165
15 - 165
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
2.9 - 69 (60Hz)
2.9 - 69 (60Hz)
Weight (kg)
20 - 200
20 - 200
Dimension L×W×H (mm)
888x696x912
888x696x912
Noise Value dB(A)
73-106
73-106
