Heat-resistant up to 300°C, Explosion-Proof, Fully Airtight - Blower - NEW

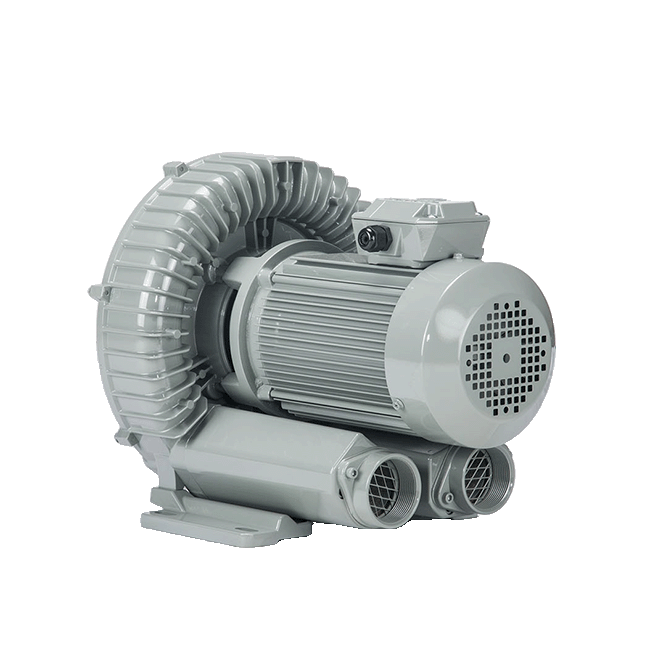

Heat-resistant up to 300°C, Explosion-Proof, Fully Airtight -Ring Blower-LG Series - 1HP-30HP-NEW
Features
• Resistant to high temperatures from 250°C to 300°C
• Fully airtight
• Special environment/Explosion-proof motor/Standard motor options
• Multiple assembly methods, customizable per client requirements
• For inquiries, please contact our company
• Patents filed in multiple countries
• Fully airtight
• Special environment/Explosion-proof motor/Standard motor options
• Multiple assembly methods, customizable per client requirements
• For inquiries, please contact our company
• Patents filed in multiple countries
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.
Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
1HP - 30HP
1HP - 30HP
Inlet/Outlet(inch)
1.5 / 2 / 2.5 / 4
1.5 / 2 / 2.5 / 4
Max. Pressure (mmAq)
2000 - 7000
2000 - 7000
Max. Air Flow (m³/min)
2 - 23
2 - 23
Max. Vacuum Pressure (mmAq)
1600 - 4300
1600 - 4300
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
2.9 - 69 (60Hz)
2.9 - 69 (60Hz)
Weight (kg)
30 - 200
30 - 200
Dimension L×W×H (mm)
800x560x574
800x560x574
Noise Value dB(A)
69 - 87
69 - 87
