Heat-resistant Turbo Blower CX-B-L Series (Three-phase, 3Φ)
Heat-resistant Turbo Centrifugal Blower CX-B110L 15HP 3Φ
Features
• Waterproof and resistant to high temperatures up to 150°C (including 1/2HP-30HP).
• Made of aluminum alloy material, lightweight, strong structure, and long service life.
• High airflow, low vibration, and low noise.
• Oil-free and pollution-free.
• Core shaft oil seal design prevents liquids and dust from entering the motor.
• The full product series has been CSA-certified.
• The CX-B-L series has been granted a U.S. patent.
• Custom design and manufacturing available according to customer requirements.
• Made of aluminum alloy material, lightweight, strong structure, and long service life.
• High airflow, low vibration, and low noise.
• Oil-free and pollution-free.
• Core shaft oil seal design prevents liquids and dust from entering the motor.
• The full product series has been CSA-certified.
• The CX-B-L series has been granted a U.S. patent.
• Custom design and manufacturing available according to customer requirements.
Applications : Pharmaceutical Machines, Food Processing Machines, Woodworking Machines, Film Extrusion Machines, Dryers, Powders and Granules Transport, Packaging Machines, Printing Machines, Textile Machines, Heat Dissipation, Air Supply, Dust collectors, Negative Pressure Attraction, And other Air Supply Purposes, etc.

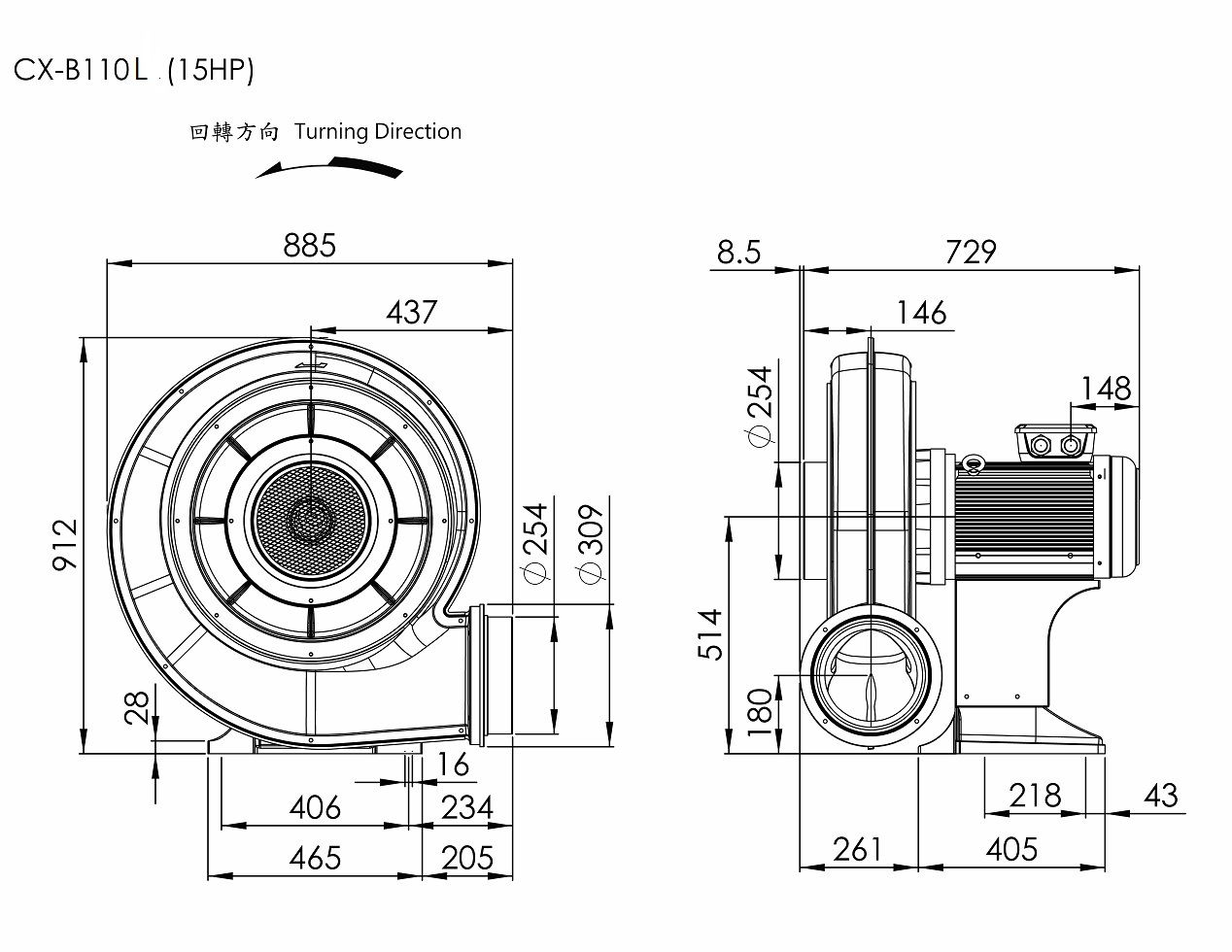

Dimension (mm)
Specifications
Frequency (Hz)
50/60
50/60
Power (kW)
11
11
Inlet/Outlet (inch)
10"(250mm)/10"(250mm)
10"(250mm)/10"(250mm)

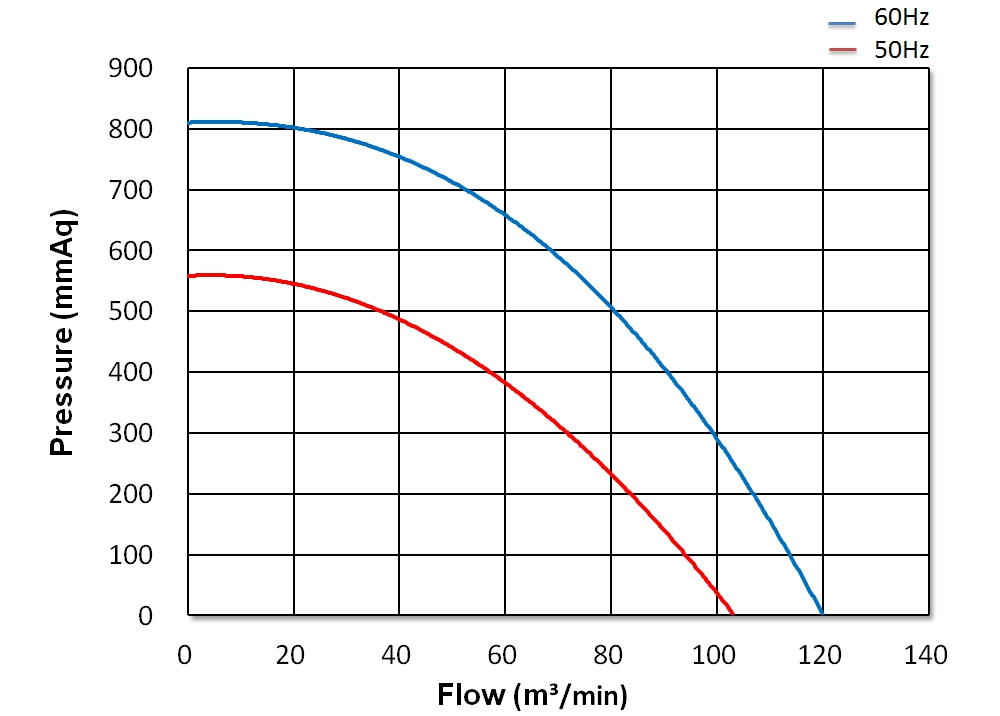

Max. Air Flow (m³/min)
103 / 120
103 / 120
Max. Pressure (mmAq)
560 / 810
560 / 810
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
38.7/21.0 (50Hz); 45.0/26.0 (60Hz)
38.7/21.0 (50Hz); 45.0/26.0 (60Hz)
Weight (kg)
146.5
146.5
Dimension L×W×H (mm)
885x669x912
885x669x912
Noise Value dB(A)
93 / 98
93 / 98
