Ring Blower LG- Series (Three-phase, 3Φ)
Ring Blower LG-35 3HP 3Φ
Features
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 150°C
•The motor has passed IE3 energy efficiency certification
• All series of products have passed CSA certification
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 150°C
•The motor has passed IE3 energy efficiency certification
• All series of products have passed CSA certification
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

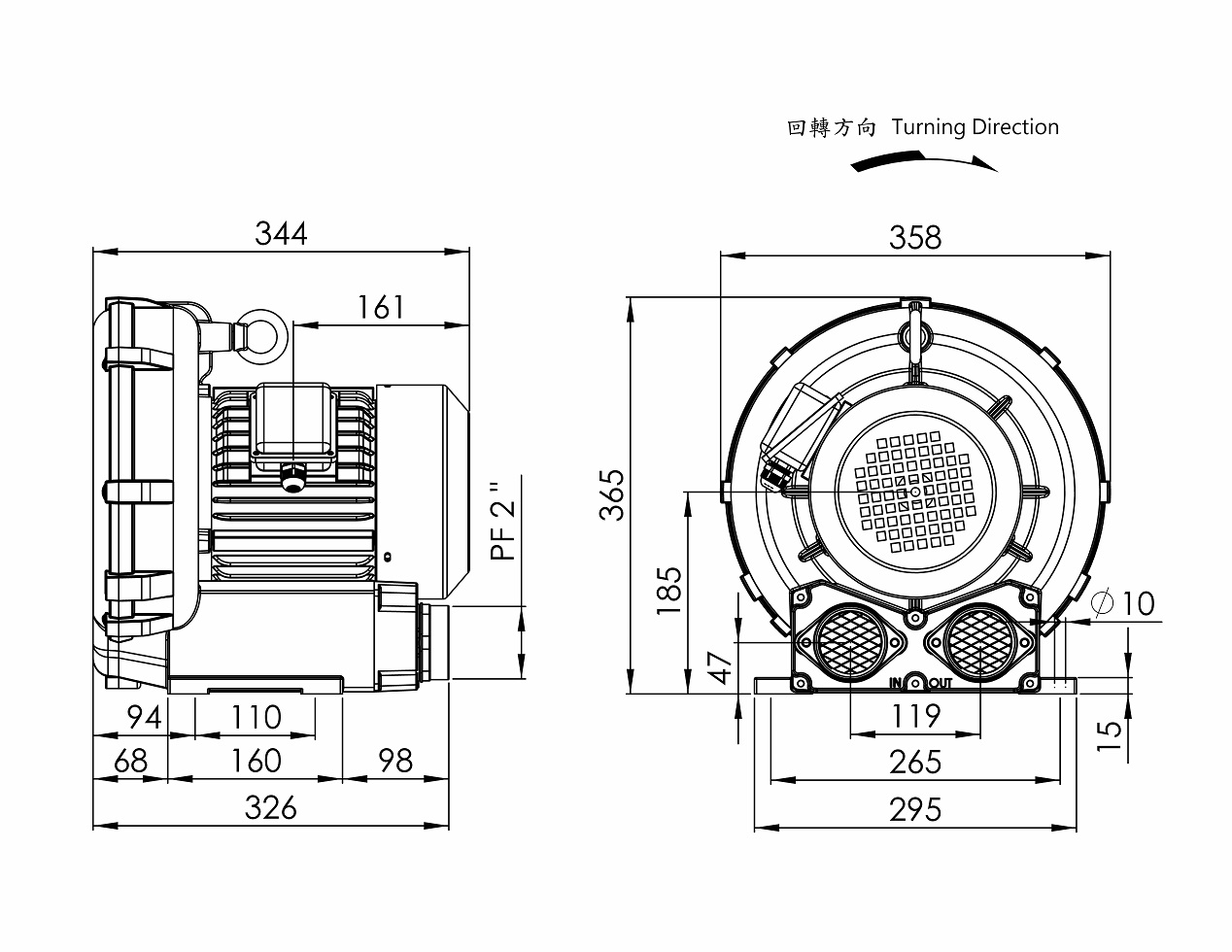

Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
2.2/2.6
2.2/2.6
Inlet/Outlet(inch)
2
2
Max. Pressure (mmAq)
1500/2200
1500/2200
Max. Air Flow (m³/min)
3.9/4.7
3.9/4.7
Max. Vacuum Pressure (mmAq)
1300/1800
1300/1800
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
8.3/7.6(50Hz); 8.2/4.7(60Hz)
8.3/7.6(50Hz); 8.2/4.7(60Hz)
Weight (kg)
33
33
Dimension L×W×H (mm)
344x358x365
344x358x365
Noise Value dB(A)
75/78
75/78
